Services

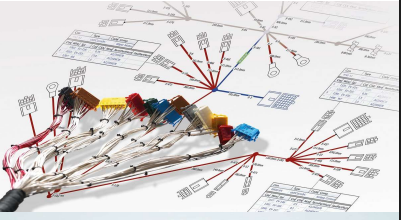

Cable Harness
We are manufacturing different types of Cable Harnesses which are used in Aerospace, Marine andDefense applications.
Cable & Wire Harness Capabilities
- Manufactured up to 12 meters length (can go longer)
- Cables handled – Halogen free, Co-axial, Shielded TP, Braided, PTFE Insulated, Power, Ethernet,USB, Semi-rigid cables, Flat ribbon cables, Multi core cables, DVI cables, Audio cables.
- Connectors – ARINC connector, D-Type & Sub-D connector, Ethernet connector, Power connector,Fisher connector, IDC connector, CMA connector, Circular connector (Ex-D3899, MIL DTL), straightplug connector and SMT/PTH/Press-Fit types.
- Processes – Crimping, Heat shrinking, Solderless wire wrapping, Epoxy Moulding, Lapp Jointsoldering, Splicing, Braided Shield Termination, Laser Marking on wires, Label Marking, Banding/TinelRing, Y Type/Right Angle/ Straight type Heat shrink Boot Sleeving, single core and multi core cableharness, Complex & Multi branch cable harness using form boards.
- Experience in Twinax, Triax & Quadrax cables and connectors (BNC, TNC, SMA..)
Build to Print
From drawing package to first article, production, and testing, we adhere to stringent quality standards and demanding timelines.
We enable customers to leverage our expertise in manufacturing, process engineering, supply chain, and project management. Our highly qualified engineering team provides end-to-end project support—developing productionready drawings, performing detailed calculations and analyses, and ensuring rapid turnaround for engineering changes during both first article and production phases.
Build to Spec.
From product concept to prototype and full-scale production, we deliver high-quality products and sub-systems within the shortest design cycles.
Our team transforms customer design requirements into practical, effective solutions—supported by a thorough qualification process and streamlined manufacturing flow. Leveraging our expertise in operations, procurement, testing, and certifications, we ensure accelerated speed to market through complete manufacturing project management. Advanced quality systems such as APQP are implemented throughout every stage to maintain consistency and excellence.
Visual Inspection Facilities
LENSEL Visual Inspection System with AVERTV Video/Picture software: Magnification of 50X & image capturing facility
Electrical Testing Facilities
- 1.MKS Test System Automated & Programmable Cable Harness Tester Insulation Resistance: 0-2000Vdc, up to 1000MegaOhm & Withstanding Voltage testing 1500Vac-5mA
- 2.HYPOT Tester Auto-sequencing Insulation Resistance: 0-1000Vdc, up to 10GigaOhm & WithstandingVoltage testing 5kVac-20mA/6kVdc-7.5 mA
Mechanical Testing Facilities
- 1.Pull Force Test Setup (straight and angular): 500 kg
- 2.Torque Meter: Up to 200 lb in
- 3.Torque Meter: Up to 10 Nm
